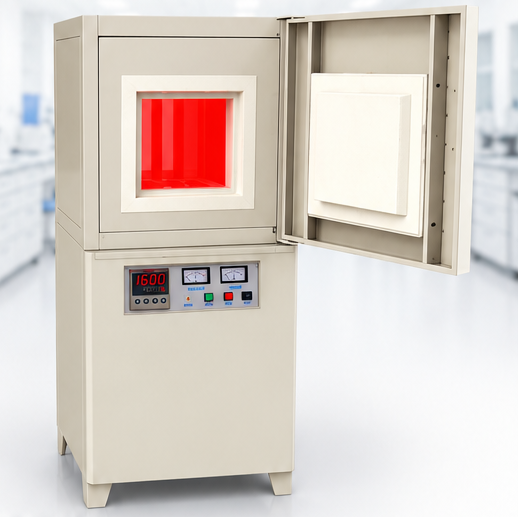

Ceramic Muffle Furnace SAINSTEEL menghadirkan pemanasan hingga 1600°C dengan elemen MoSi2 bars, insulasi inorganic fiber vacuum forming, dan kontrol thyristor presisi. Tersedia 6 model kapasitas 2L–25L, dilengkapi over-temperature alarm dan garansi 1 tahun.
Kategori
Aplikasi
Industri
Garansi
1 Tahun
Dapatkan penawaran terbaik untuk laboratorium anda
| Model | FNC-3-1600 | FNC-4-1600 | FNC-6-1600 | FNC-11-1600 | FNC-15-1600 | FNC-25-1600 |
|---|---|---|---|---|---|---|
| Heating Mode | Both sides silicon molybdenum rods | Both sides silicon molybdenum rods | Both sides silicon molybdenum rods | Both sides silicon molybdenum rods | Both sides silicon molybdenum rods | Both sides silicon molybdenum rods |
| Temp. range | 1600°C | 1600°C | 1600°C | 1600°C | 1600°C | 1600°C |
| Temp. resolution | 1°C | 1°C | 1°C | 1°C | 1°C | 1°C |
| Temp. fluctuation | ±1°C | ±1°C | ±1°C | ±1°C | ±1°C | ±1°C |
| Heating up time | 50 min | 50 min | 50 min | 50 min | 50 min | 50 min |
| Chamber material | Inorganic fiber | Inorganic fiber | Inorganic fiber | Inorganic fiber | Inorganic fiber | Inorganic fiber |
| Heating device | Silicon molybdenum rods | Silicon molybdenum rods | Silicon molybdenum rods | Silicon molybdenum rods | Silicon molybdenum rods | Silicon molybdenum rods |
| Shell material | Spraying cold rolled steel | Spraying cold rolled steel | Spraying cold rolled steel | Spraying cold rolled steel | Spraying cold rolled steel | Spraying cold rolled steel |
| Temp. control | Use microcomputer PID control of heating | Use microcomputer PID control of heating | Use microcomputer PID control of heating | Use microcomputer PID control of heating | Use microcomputer PID control of heating | Use microcomputer PID control of heating |
| Program mode | 50 sections programmable control runs (optional) | 50 sections programmable control runs (optional) | 50 sections programmable control runs (optional) | 50 sections programmable control runs (optional) | 50 sections programmable control runs (optional) | 50 sections programmable control runs (optional) |
| Timer | 0–9999 min | 0–9999 min | 0–9999 min | 0–9999 min | 0–9999 min | 0–9999 min |
| Sensor | B | B | B | B | B | B |
| Safety Device | Over-temperature alarm | Over-temperature alarm | Over-temperature alarm | Over-temperature alarm | Over-temperature alarm | Over-temperature alarm |
| Working Size (WxDxH) | 120x150x120 | 150x200x150 | 150x300x120 | 200x300x180 | 200x400x180 | 250x400x250 |
| Exterior Size (WxDxH) | 570x540x960 | 600x590x950 | 590x750x1250 | 730x750x1300 | 730x810x1300 | 780x850x1400 |
| Working capacity | 2L | 4L | 6L | 11L | 15L | c |
| Power | AC220V/3kw | AC220V (380V)/4kw | AC380V/8kw | AC380V/12kw | AC380V/16kw | AC380V/20kw |
| N.W / G.W | 60/65 | 80/85 | 100/110 | 130/150 | 160/180 | 240/260 |
| Optional Device | Chimney; gate turn-off switch; Paperless recorder + sigma software | Chimney; gate turn-off switch; Paperless recorder + sigma software | Chimney; gate turn-off switch; Paperless recorder + sigma software | Chimney; gate turn-off switch; Paperless recorder + sigma software | Chimney; gate turn-off switch; Paperless recorder + sigma software | Chimney; gate turn-off switch; Paperless recorder + sigma software |
Ceramic Muffle Furnace dari SAINSTEEL adalah furnace laboratorium berkinerja tinggi dengan suhu maksimum hingga 1600°C, dirancang untuk berbagai kebutuhan pemanasan intensif di laboratorium maupun industri. Unit ini menggunakan struktur double furnace dengan laju pemanasan cepat, tidak mudah collapse meski dioperasikan pada suhu tinggi, serta bebas abu (no ash) pada pemanasan tinggi. Material insulasi berupa inorganic fiber yang diproduksi dengan teknologi vacuum forming memastikan efisiensi panas yang optimal.
Sebagai elemen pemanas, digunakan MoSi2 bars yang tersusun di kedua sisi furnace sehingga mudah diganti saat diperlukan. Shell menggunakan double layer high quality carbon steel dengan sistem air circulation insulation, menjaga suhu permukaan tetap rendah. Kontrol suhu menggunakan sistem thyristor dengan pengaturan transforming voltage regulation serta switching manual/otomatis non-interference. Dilengkapi pula fitur over-temperature alarm, alarm compensation, dan temperature correction, serta pilihan paperless recorder atau RS232 communication interface untuk kontrol lapangan (field control) dan perekaman data historis serta kurva pemanasan secara komputerisasi.
Tersedia dalam enam pilihan kapasitas, dari 2L hingga 25L, dengan rentang suhu kerja hingga 1600°C, resolusi suhu 1°C, dan fluktuasi ±1°C. Cocok digunakan untuk heat treatment, sintering, debinding, ashing, kalsinasi, material testing, dan riset laboratorium. Setiap unit didukung garansi satu tahun untuk suku cadang dan servis.
